Cake preparation for horizontal hydraulic presses
Form the wrapped oilseed cake to match the press mold
The cake wrapping machine is a supporting unit for horizontal hydraulic oil presses. Its mold is selected around the required cake diameter so prepared material can move into the press in the intended wrapped form.
Position in the workflow
Coordinate material preparation, wrapping, and press loading
This machine does not crush, roast, or extract oil. It supports the cake-forming step before a compatible horizontal hydraulic press. The exact operator sequence and wrapping material must follow the supplied machine and process instructions.
Compatibility first
Select the mold from the press and cake requirements
The source page lists a customizable mold inner diameter from 240 to 480 mm and states that other sizes require customization. Diameter alone is not enough to confirm fit.
Press-side information
- Horizontal hydraulic press make and model
- Press basket, chamber, plate, or mold drawing
- Required cake diameter, thickness, and loading arrangement
- Number of cakes loaded in one press cycle
- Available loading height and operator access
Material-side information
- Oilseed and prepared material form
- Hot- or cold-process route before cake formation
- Target mass or volume per wrapped cake
- Wrapping cloth or consumable specification
- Required changeover and cleaning between materials
Approve the final mold drawing before production
The live page notes that appearance, color, size, weight, and material may vary between production batches. Treat the photographs as references and place the approved drawing, mold dimensions, material list, and packing scope in the order documents.
Published specification
Reference data for the current cake wrapping machine
These values are taken from the existing product page. Confirm them against the customized mold and final production drawing.
| Parameter | Source-listed value | Project check |
|---|---|---|
| Mold inner diameter | 240–480 mm; customizable | Match the horizontal press and required wrapped-cake geometry. |
| Total power | 1.1 kW | Confirm motor data, voltage, frequency, and phase. |
| Hydraulic oil | No. 46 wear-resistant hydraulic oil | Confirm the locally available approved grade and fill quantity. |

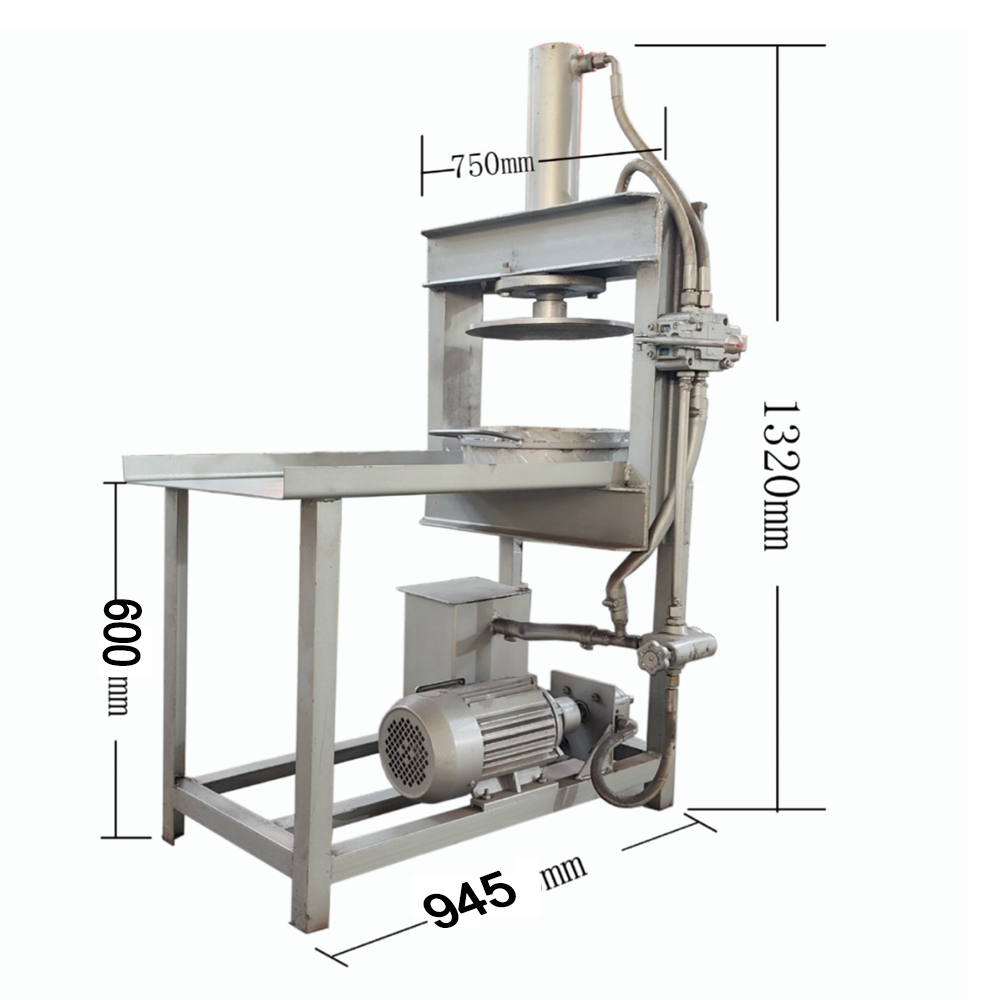

| Overall dimensions | 945 x 750 x 1320 mm | Confirm the dimension order and customized-mold effect. |
| Total height | 1320 mm | Check operator reach and overhead clearance. |
| Width | 750 mm | Check access route and side service space. |
| Table height | 600 mm | Review ergonomics and transfer height to the press. |
| Approximate weight | 112 kg | Confirm shipping weight and safe handling method. |
| Machine material | Carbon steel | Confirm surface finish and product-contact or consumable-contact parts. |
Operating references
Review the forming motion and operator work area
The two existing videos show the machine as an operating reference. Use them to discuss mold access, cloth placement, hand clearance, control position, cake removal, and transfer to the press.
Operation planning
Build a repeatable cake-preparation station
- Use only the approved mold, wrapping material, and loading quantity.
- Keep hands clear of the forming area and follow the supplied control sequence.
- Define how prepared material arrives and how wrapped cakes leave the table.
- Provide clean staging areas for unused cloth and completed cakes.
- Match operator pace to the horizontal press cycle without unsafe stockpiling.
Maintenance and consumables
Confirm hydraulic service items and wrapping supplies
- Inspect hydraulic hoses, fittings, cylinder area, controls, fasteners, and guards.
- Keep the mold and worktable clean between material batches.
- Request the hydraulic-fluid fill quantity and replacement procedure.
- Confirm seal, hose, switch, and mold-wear part numbers before shipment.
- Specify wrapping-cloth dimensions, material, expected reuse, and reorder quantity.
Buyer configuration checklist
Send the press details with the inquiry
- Oilseed and preparation route
- Horizontal hydraulic press model and drawings
- Required cake diameter, thickness, and batch arrangement
- Current wrapping method and cloth specification
- Target cakes per operating period and press cycle schedule
- Local voltage, frequency, and phase
- Workshop layout, loading route, and operator position
- Destination, spare-parts request, and documentation needs
The mold defines the useful machine configuration
Do not order from the nominal 240–480 mm range alone. Confirm the horizontal press geometry, actual cake requirement, mold drawing, wrapping consumable, and transfer method together.
Related preparation equipment
Review the machines before and after cake formation
Match the cake wrapper to the horizontal press mold
Send the press model and drawing, required cake dimensions, oilseed and preparation route, wrapping material, local power supply, workshop layout, and destination country.
