Olive oil line — cold-press malaxation + two-stage centrifugal separation
Complete Olive Oil Pressing Solution (0.5–1 t/h)
Fresh olives are wet fruit, not dry seed. A proper line does not just press — it rotates the paste slowly, then separates oil from pulp and oil from vegetable water in two separate centrifuges. This is the complete solution from our olive-factory quote: washing, crushing, malaxing, decanter separation, disc-polishing and PLC control, priced per machine and as a full line.
Rated capacity 0.5–1 t/h fresh olives, 41.1 kW installed power, all food-contact parts in SS304.
The process
Six linked steps, not a single press
De-leaf & wash
Scraper conveyor feeds fresh olives into the XYS-6000 washer that de-leafs and cleans at 0.5 t/h.
Grind
The ZTBC500 crusher breaks the fruit at a rated 1.5 t/h — fast enough to keep the loaded hopper moving.
Malax
The JBJ-250 paste mixer conditions the crushed pulp so oil droplets coarsen before separation.
Decanter
The LWS300 horizontal centrifuge (4200 r/min) pulls oil away from the heavier pulp at 1–5 t/h.
Polish
The DHC300 vertical butterfly centrifuge (6212 r/min) polishes the oil and splits off vegetable water.
Collect & pump
Finished oil drops into the DYG200 tank and is moved by the RY40 / KCB oil pumps.
Quotation — 13 items
Equipment list & price
Prices below are the supplier quotation for this line (list prices, CNY). Convert to USD at your bank’s prevailing rate at order date.
| No. | Machine | Model | Capacity | Power | Price (CNY) |
|---|---|---|---|---|---|
| 1 | Scraper conveyor | JY-8 | 0.5 t/h | 2.2 kW | ¥22,000 |
| 2 | De-leafing & cleaning machine | XYS-6000 | 0.5 t/h | 3.5 kW | ¥88,000 |
| 3 | Scraper conveyor | JY-8 | 0.5 t/h | 2.2 kW | ¥22,000 |
| 4 | Olive grinding / crushing machine | ZTBC500 | 1.5 t/h | 7.5 kW | ¥86,000 |
| 5 | Olive paste (slurry) mixer | JBJ-250 | batch | — | ¥65,000 |
| 6 | Horizontal centrifuge (decanter) | LWS300 | 1–5 t/h | 11 kW | ¥180,000 |
| 7 | Butterfly / disc centrifuge | DHC300 | 1 t/h | 4 kW | ¥260,000 |
| 8 | Finished-oil sump tank | DYG200 | storage | — | ¥15,000 |
| 9 | Filter oil pump | RY40 | 8 m³/h | 3 kW | ¥5,000 |
| 10 | Oil transfer pump | KCB-83.3 | 8 m³/h | 2.2 kW | ¥5,000 |
| 11 | Air compressor | HP1.0 | — | 5.5 kW | ¥10,000 |
| 12 | PLC power distribution cabinet | GY-150 | 630 A / IP44 | — | ¥35,000 |
| 13 | On-site installation material | — | — | — | ¥22,000 |
Line total
Combined installed power 41.1 kW. Total equipment price ¥815,000 (81.5 ten-thousand CNY) — price includes tax, excludes freight. Contact us to convert to FOB/EXW and confirm lead time for your destination port.
Gallery
Equipment photos
The machines that make up the line, photographed from our olive-oil factory.
Key specifications
What is inside each machine
Washing

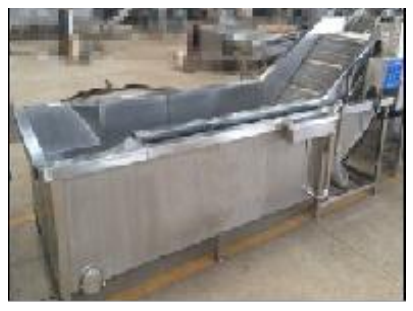

XYS-6000 — SS304, 500 kg, 3500×1200×1100 mm. De-leafs and cleans at 0.5 t/h before pressing.
Crushing

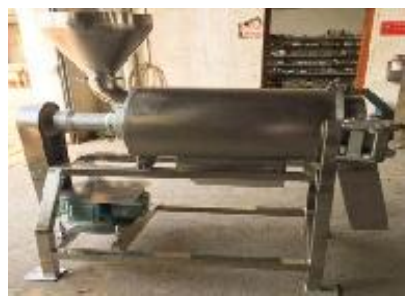

ZTBC500 — SS304, 800 kg, 1500×400×900 mm, 1.5 t/h.
Malaxing

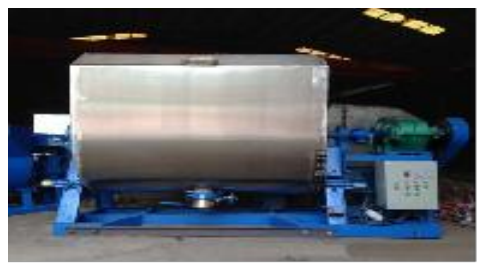

JBJ-250 — SS304, 150 kg, 1600×800×300 mm.
Decanter

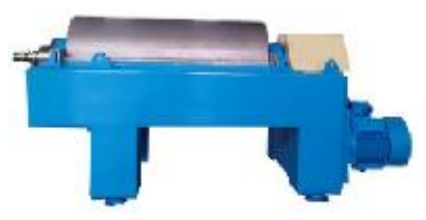

LWS300 — SS304, 1400 kg, 2765×1000×1080 mm, 4200 r/min, 300 mm drum.
Polisher

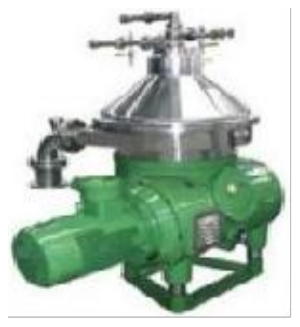

DHC300 — SS304, 580 kg, 850×650×800 mm, 6212 r/min, 300 mm drum.
Sum tank

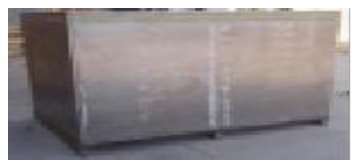

DYG200 — SS304, 200 kg, 1500×1000×500 mm, finished-oil collection.
Pumps
RY40 + KCB-83.3 oil pumps, 8 m³/h each, 960 r/min.
Control
GY-150 PLC cabinet, 630 A rated current, IP44 protection for the whole line.
