Edible oil bottling and packaging
Match the filling method to the bottle, oil, and production speed
Semi-automatic machines, automatic filling lines, bulk-container systems, capping, labeling, coding, and carton equipment can be supplied individually or planned as one packaging section.
Packaging workflow
Connect filling to the complete production route
The packaging section begins after oil filtration or refining and ends with a sealed, labeled, coded, and packed product.
Filling methods
Select the equipment class first
Sauce and paste piston filling
Pneumatic piston dosing for sauces, honey, peanut butter, creams, pastes, juice, water and suitable oils.
View sauce and paste filler →Automatic filling lines
Continuous bottle handling with conveyors and optional integration to capping, labeling, and packing.
View automatic filling lines →Flow-meter and weighing systems
Choose the measuring principle around filling range, container size, target accuracy, and line speed.
Review flow-meter filling →End-of-line packaging
Add bottle feeding, capping, labeling, laser marking, conveyor transfer, and carton sealing where required.
Browse packaging equipment →Equipment catalog
Filling machines and packaging modules
Open the equipment page closest to the required filling range and automation level.
Configuration data
What determines the filling-line design
- Oil type, viscosity, and filling temperature
- Bottle material, volume, neck, and cap style
- Target bottles per minute or daily output
- Required filling accuracy and cleaning method
- Semi-automatic or automatic operation
- Label, date code, carton, voltage, and workshop layout
Optional nitrogen dosing
For compatible bottles and products, a liquid nitrogen dosing unit can be positioned after filling and before capping to support headspace oxygen control and container pressure.
Original page media
Filling-line layout, equipment photographs, and operating video
The earlier filling-equipment directory contained this layout drawing, machine gallery, filled-bottle reference, and semi-automatic piston-filler video.
Semi-automatic piston filler demonstration
Operating video showing bottle placement and a filling cycle.
Original photographs

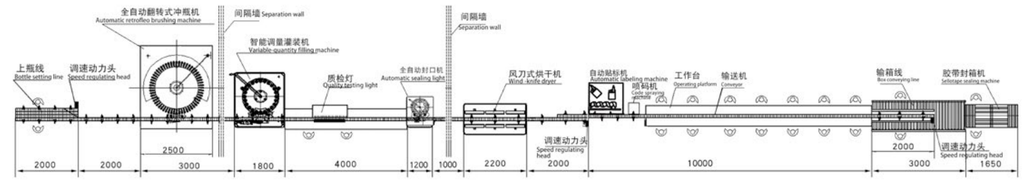

Automatic bottling-line layout
Earlier line drawing covering bottle feeding, filling, capping, labeling, coding, and packing positions.

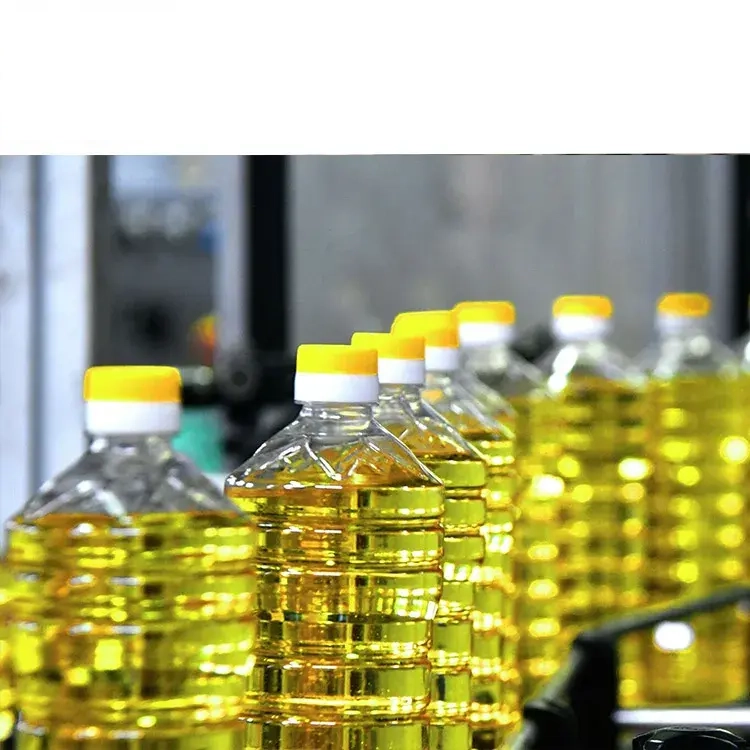

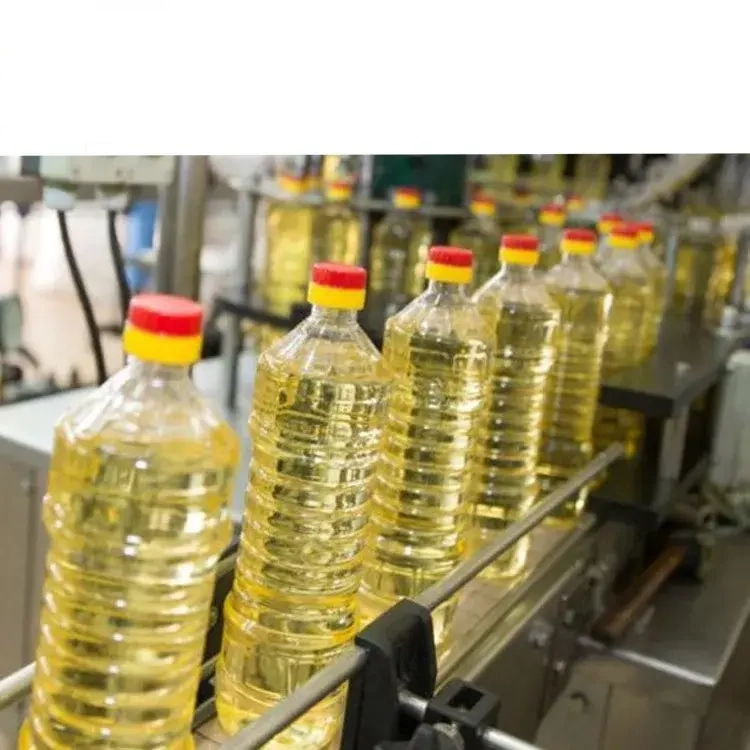

Filled edible-oil bottles on the line
Finished-bottle reference from the earlier filling directory.

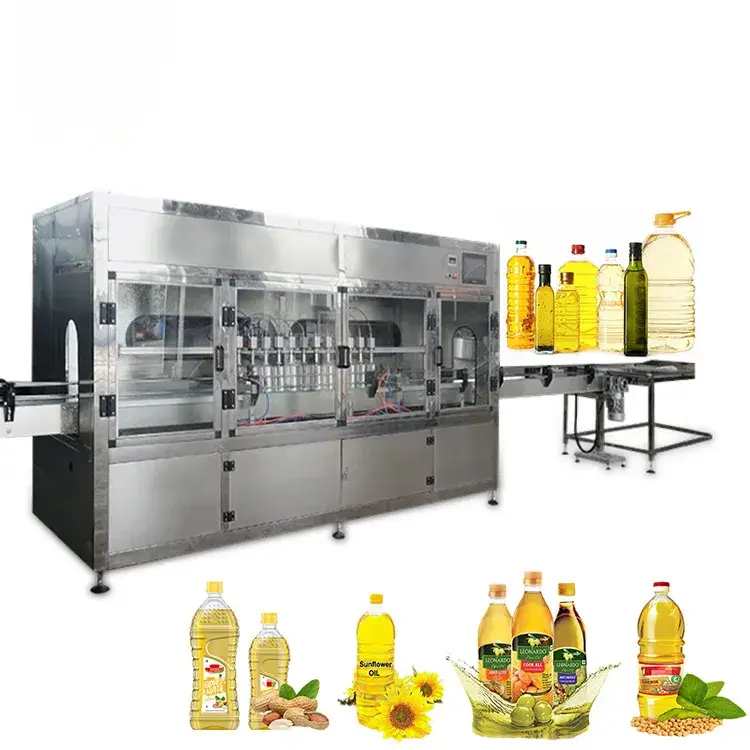

Compact automatic filling machine
Original product photograph restored from the earlier directory.

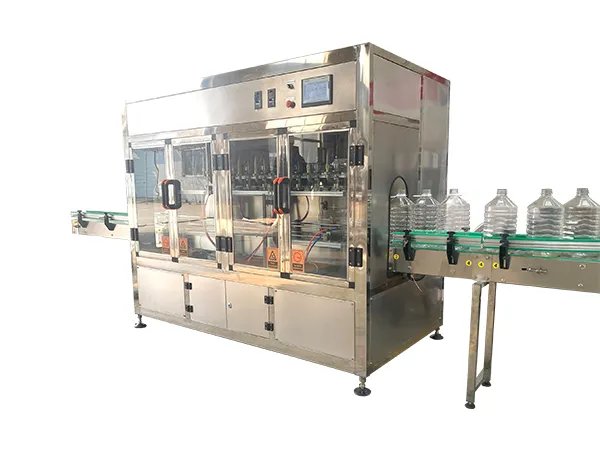

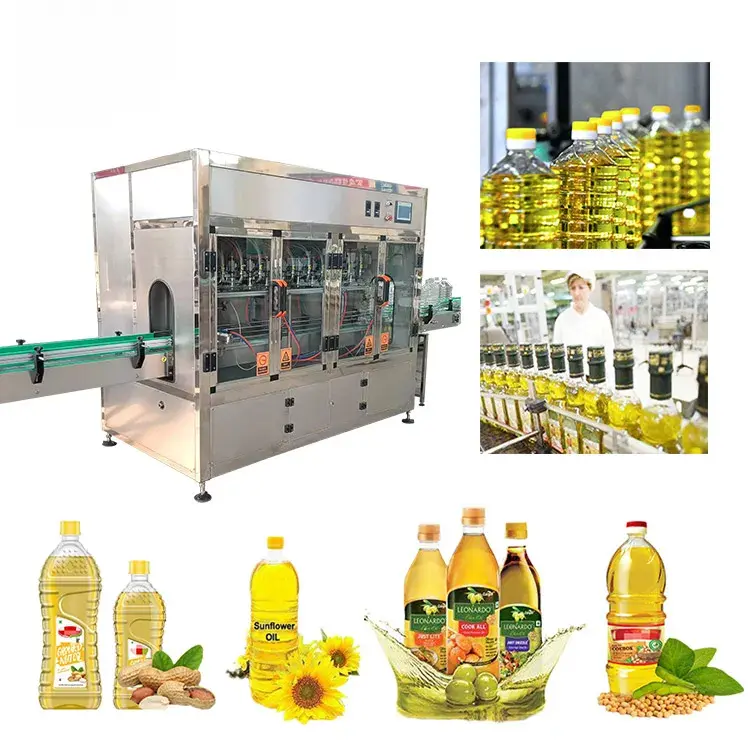

Automatic edible-oil filling machine
Original enclosed filling-machine photograph.

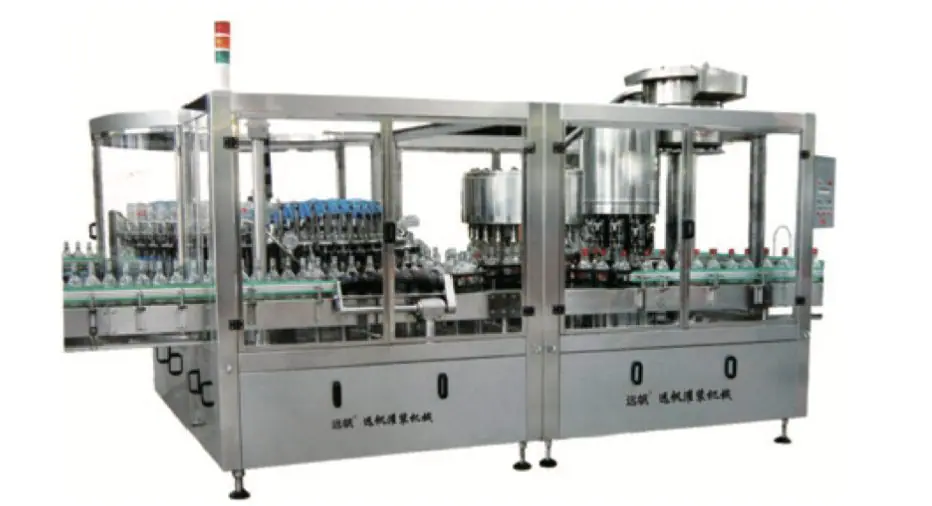

Integrated filling and capping line
Earlier equipment reference for a connected edible-oil bottling section.
Bottle labeling machine
Original labeling-equipment photograph restored to the directory.

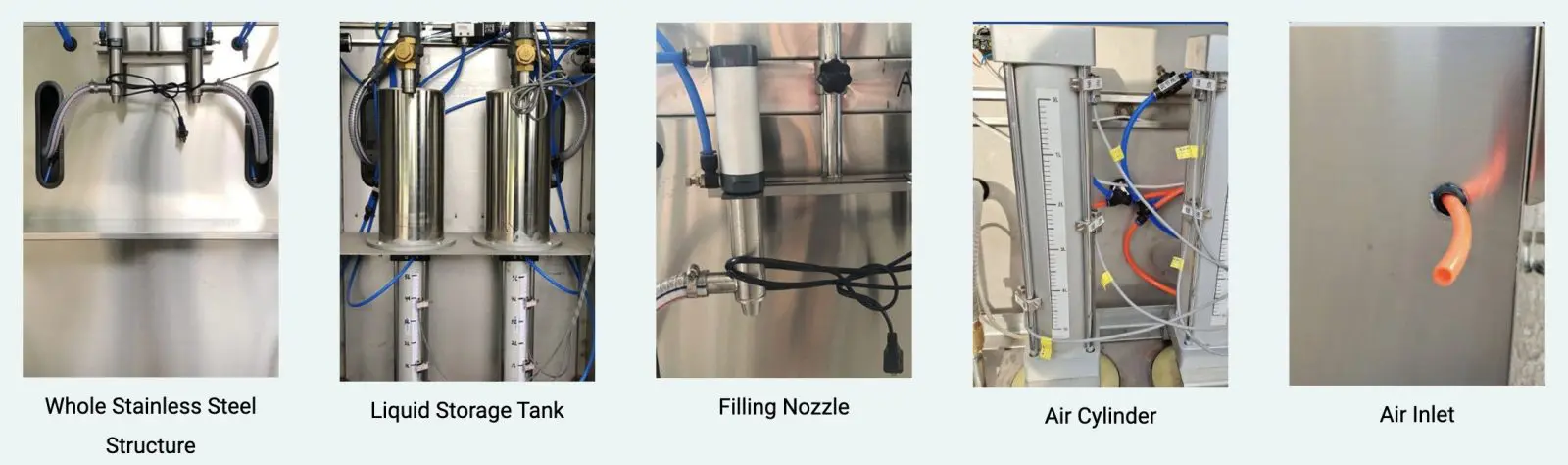

Piston filler construction details
Stainless structure, storage cylinders, nozzles, air cylinders, and air-inlet details.
Oil bottle capping machine
Original capping-machine photograph from the earlier packaging directory.
Additional packaging equipment
Keep specialist filling and end-of-line machines discoverable
These machines are not all shown in the main navigation, but remain available from the filling-equipment hub.
Configure the packaging section around the actual container
Send the bottle drawing, fill volume, oil temperature, target speed, cap and label details, voltage, workshop layout, and destination country.
