Hydraulic Oil Press Machine Manufacturer
300 to 630-ton hydraulic oil presses for hot pressing and cold pressing — sesame, peanut, walnut, flaxseed, tea seed, coconut and more. Buy a single press or a complete edible oil production line, tested in our factory before shipment.
Product range
Choose your hydraulic oil press by process and scale
Every hydraulic oil press machine we build is a batch press: prepared oilseed is loaded into a steel barrel and a hydraulic cylinder squeezes the oil out with no screw friction. Pick the family that matches your raw material and how much you press per day.

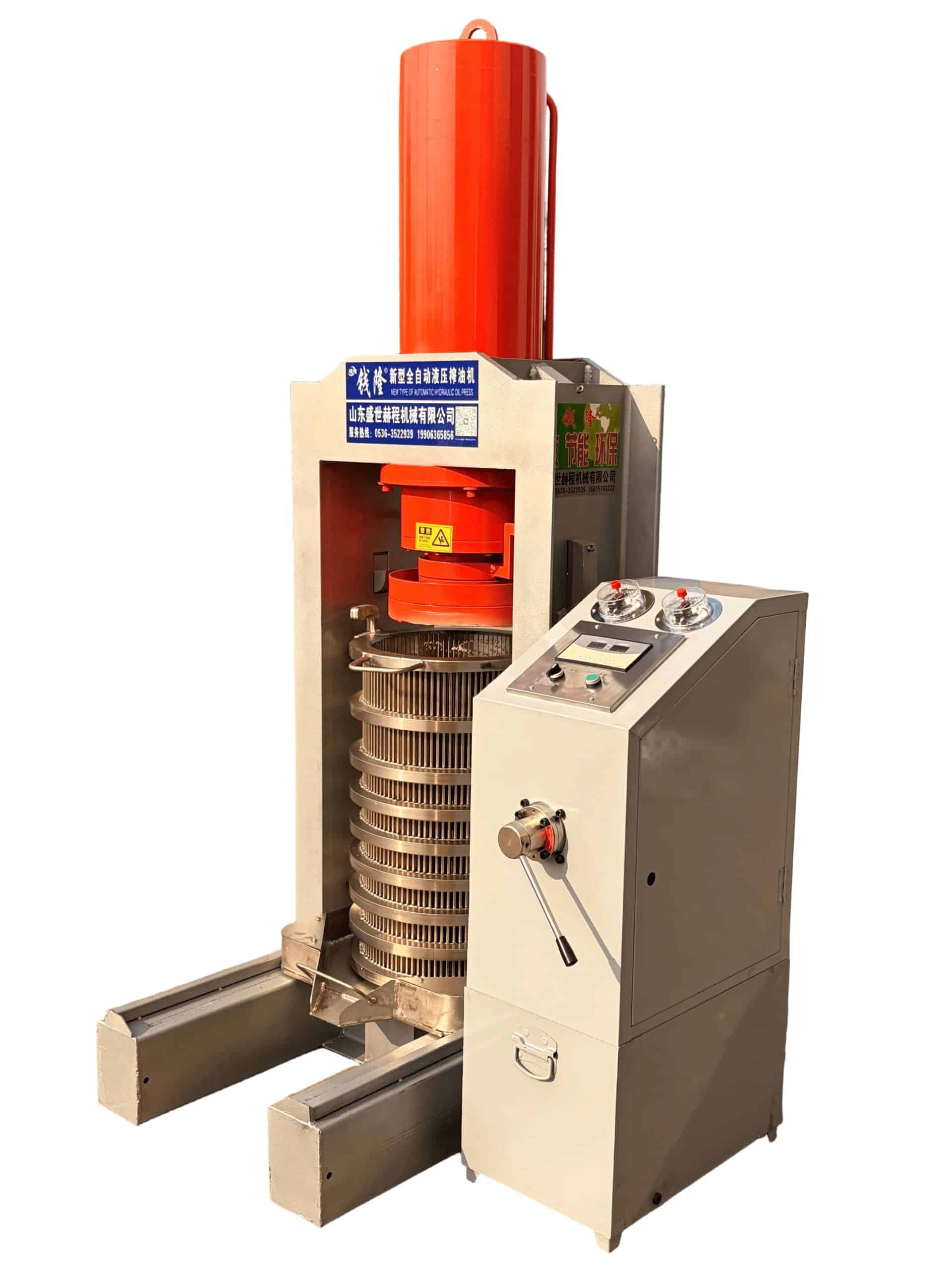

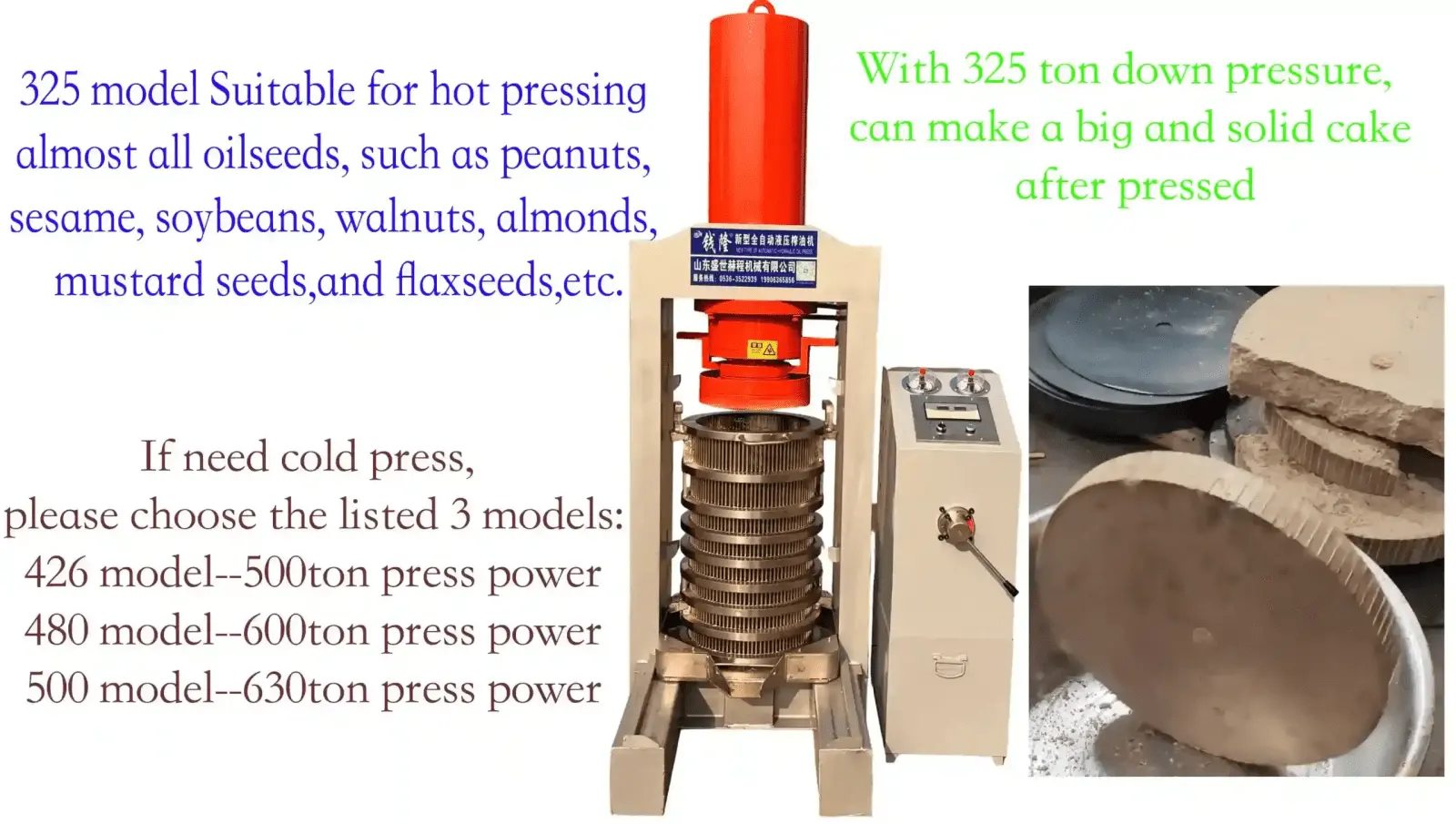

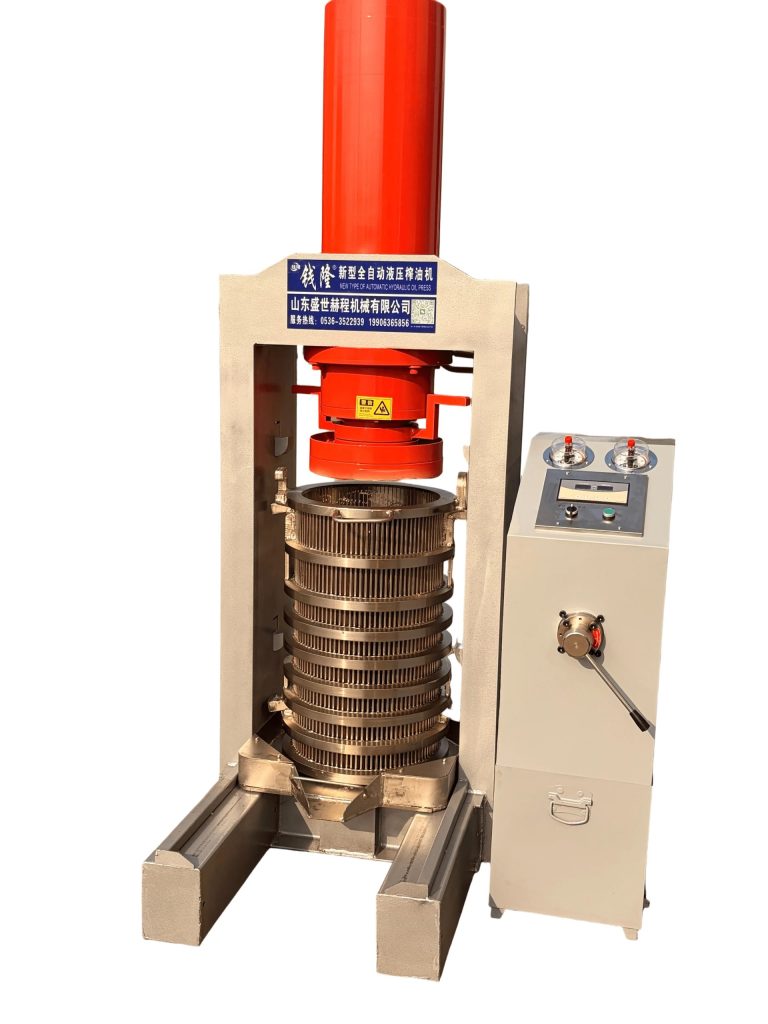

Hot press · 300 / 325 t
Sesame & peanut oil press
Our best-selling models for roasted sesame, peanut and other conditioned seeds. 30–40 minutes per barrel, 5–100 kg per batch.
300 / 325 specifications →

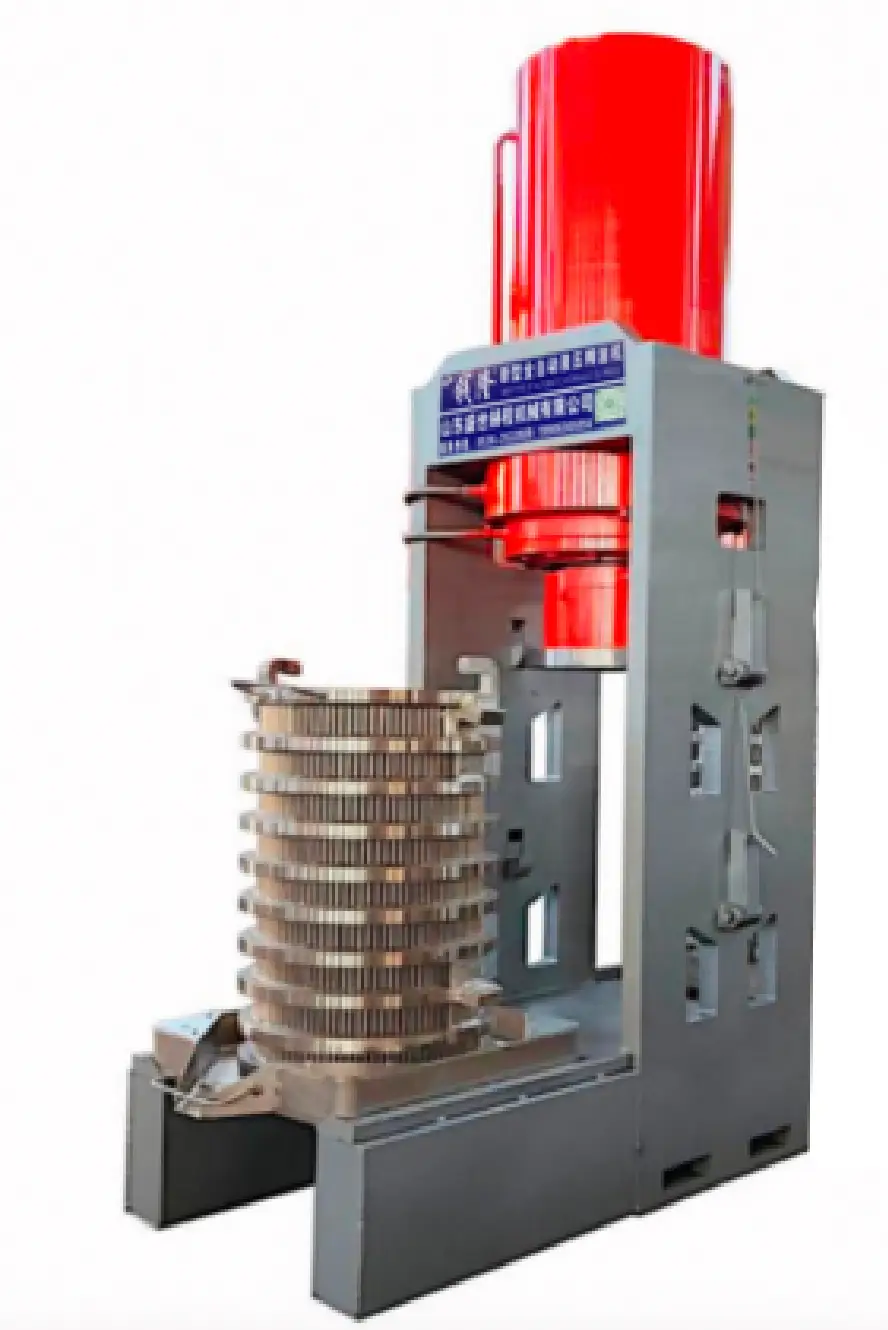

Cold press · 370–630 t
Cold press oil machine
Models 355, 400, 426, 480 and 500 for walnut, flaxseed, tea seed, almond, pumpkin seed and other premium cold-pressed oils.
Cold-press specifications →
Shop size · KHOP 10/15/20 kg

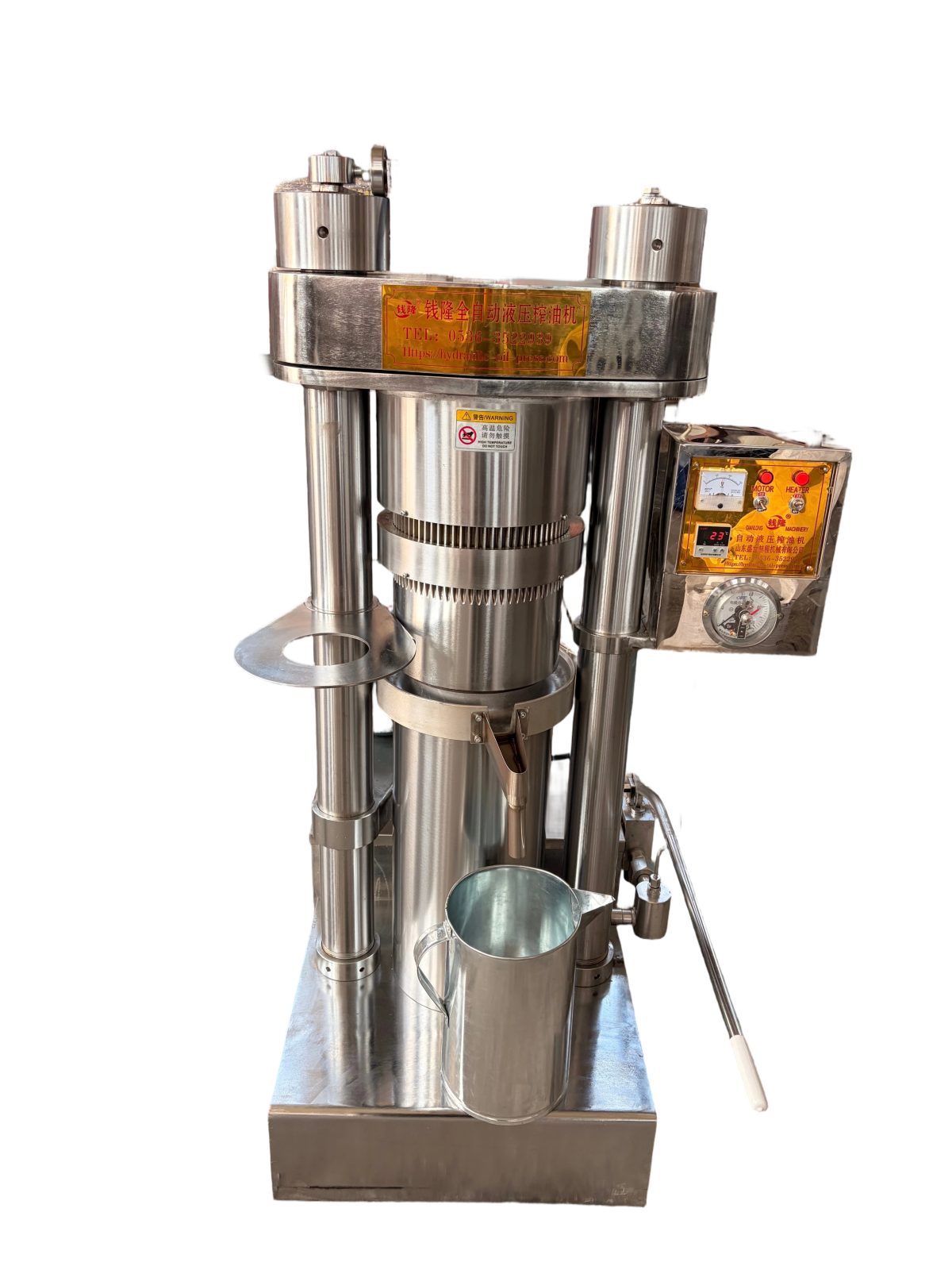

Small hydraulic oil press
Compact stainless Korean-type presses for fresh-oil shops and markets — press sesame in front of your customers.
Small press models →
Turnkey

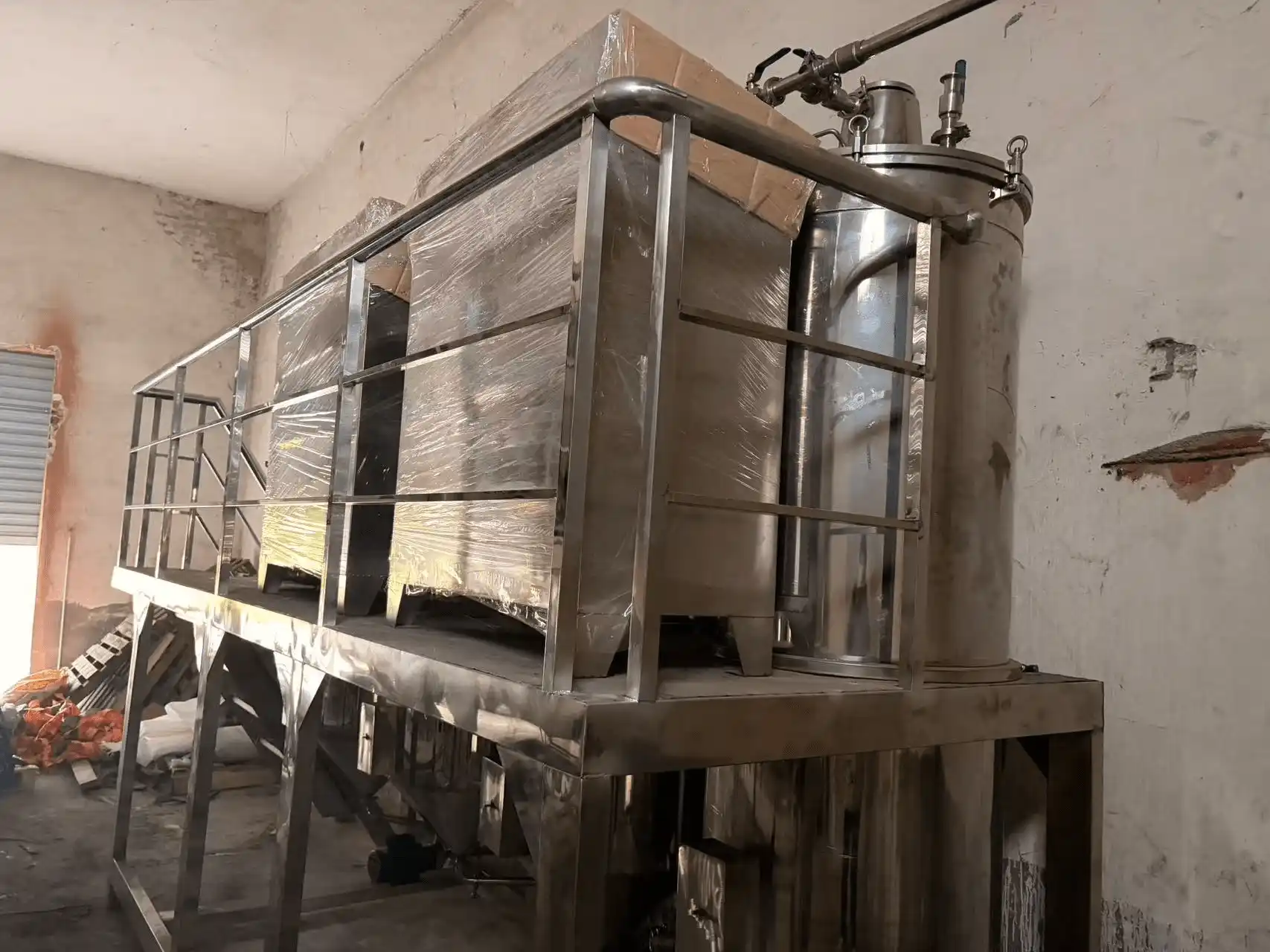

Edible oil production line
From seed cleaning and roasting to pressing, oil filtration, optional refining, bottle filling and packing.
See production lines →Specifications
Hydraulic oil press specifications at a glance
All seven full-size models run a 60 MPa hydraulic system with an 800 mm-high barrel. Press force — not system pressure — is what increases from model to model. A 390 mm barrel holds more seed per batch; a 300 mm barrel gives higher pressure on the cake for hard or low-oil materials.
| Model | Process | Press force | Batch per barrel Ø390 / Ø300 mm | Cake pressure Ø390 / Ø300 mm | Weight with control box | Cycle per barrel |
|---|---|---|---|---|---|---|
| 300 | Hot press | 300 t | 5–100 kg / 5–60 kg | 25 / 42 MPa | 1.3 / 1.2 t | 30–40 min |
| 325 Best seller | Hot press | 325 t | 5–100 kg / 5–60 kg | 27 / 46 MPa | 1.4 / 1.3 t | 30–40 min |
| 355 | Cold press | 370 t | 5–100 kg / 5–60 kg | 31 / 52 MPa | 1.9 / 1.8 t | about 2 h |
| 400 | Cold press | 410 t | 5–100 kg / 5–60 kg | 34 / 58 MPa | 2.0 / 1.9 t | about 2 h |
| 426 | Cold press | 500 t | 5–100 kg / 5–60 kg | 42 / 71 MPa | 2.2 / 2.1 t | about 2 h |
| 480 | Cold press | 600 t | 5–100 kg / 5–60 kg | 50 / 85 MPa | 3.1 / 3.0 t | about 2 h |
| 500 | Cold press | 630 t | 5–100 kg / 5–60 kg | 53 / 89 MPa | 3.3 / 3.2 t | about 2 h |
Cake pressure in MPa per cm² of cake surface. Cycle time is pressing only, excluding loading and cake removal; real output depends on the oilseed, preparation and batch load. Double-barrel versions press one barrel while the other is loaded. Shop-size KHOP presses: 10 kg, 15 kg and 20 kg per batch (about 1.0, 1.8 and 2.1 t per 24 h). Full capacity chart →
Choose by oilseed
Oil press machines for the seed you actually press
Preparation and pressing temperature matter as much as tonnage. Roasted sesame and peanut go to the 300/325 hot press; walnut, flax and other premium seeds are usually cold pressed on the 355–500 range.
Why hydraulic pressing
Clear oil, intact flavour, simple operation
A hydraulic press squeezes the oil out with steady pressure instead of screw friction, so the oil runs clear, keeps its aroma and stays cool enough for cold-pressed labels. That is why sesame, walnut and other premium oils are traditionally hydraulic pressed.
- Low oil temperature — better colour, aroma and nutrients
- Less fine sediment than screw pressing, so filtering is easier
- Few wear parts: separator plates, seals and filter paper
Specifications and working principle → Step-by-step with photos → Hydraulic vs screw oil press →
Complete line
From raw seed to bottled oil
Start with the press and add sections as your business grows. We supply and match every step.
Shandong Shengshi Hecheng Machinery
Why buyers order from our factory
Recently shipped to: Uzbekistan · Kyrgyzstan · Tajikistan · Turkmenistan · India · Vietnam · Kenya — see project photos and videos
Plan by business stage
Starting an oil business?

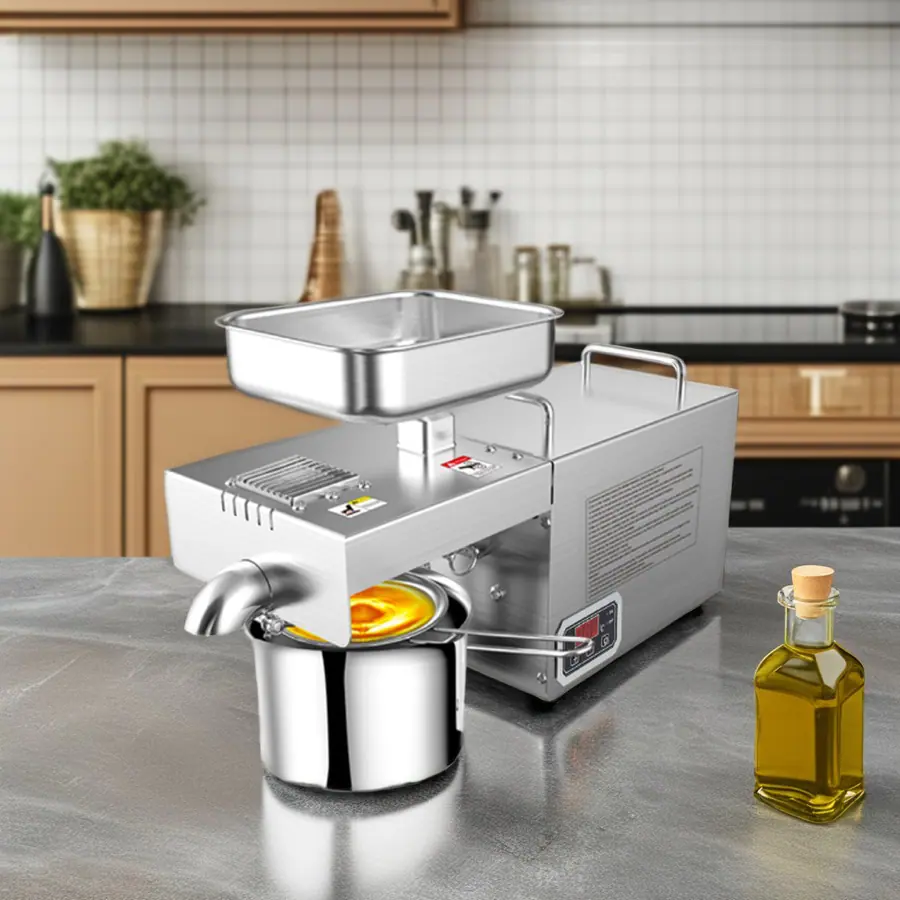

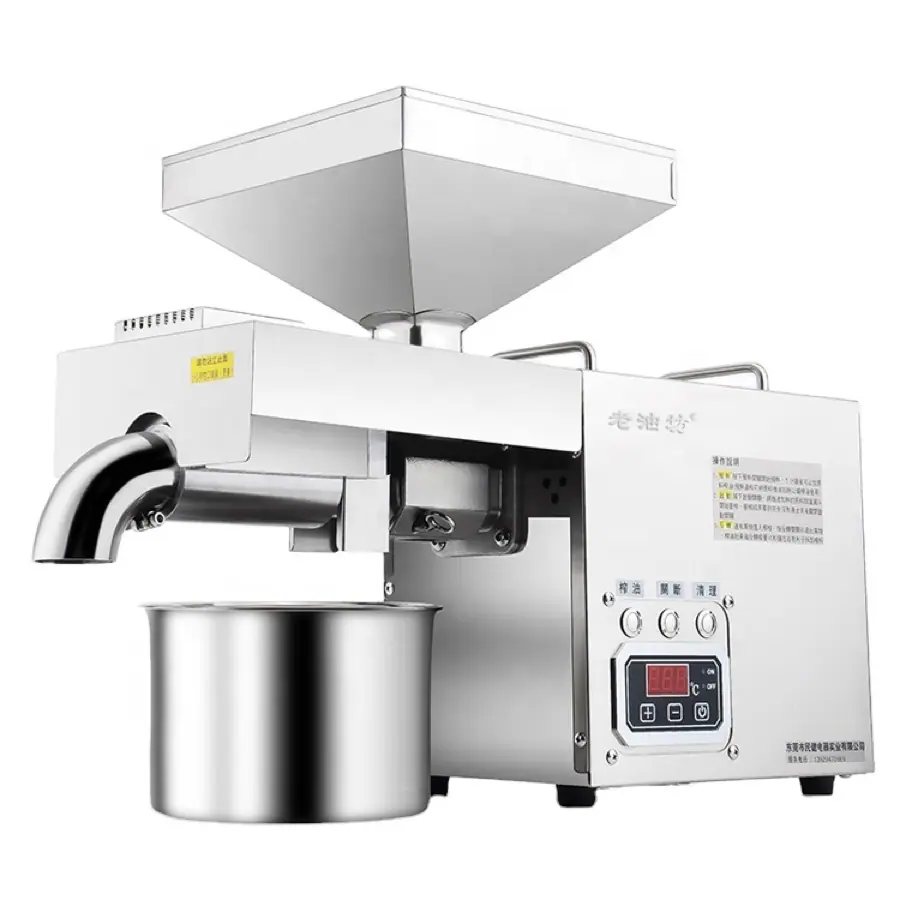

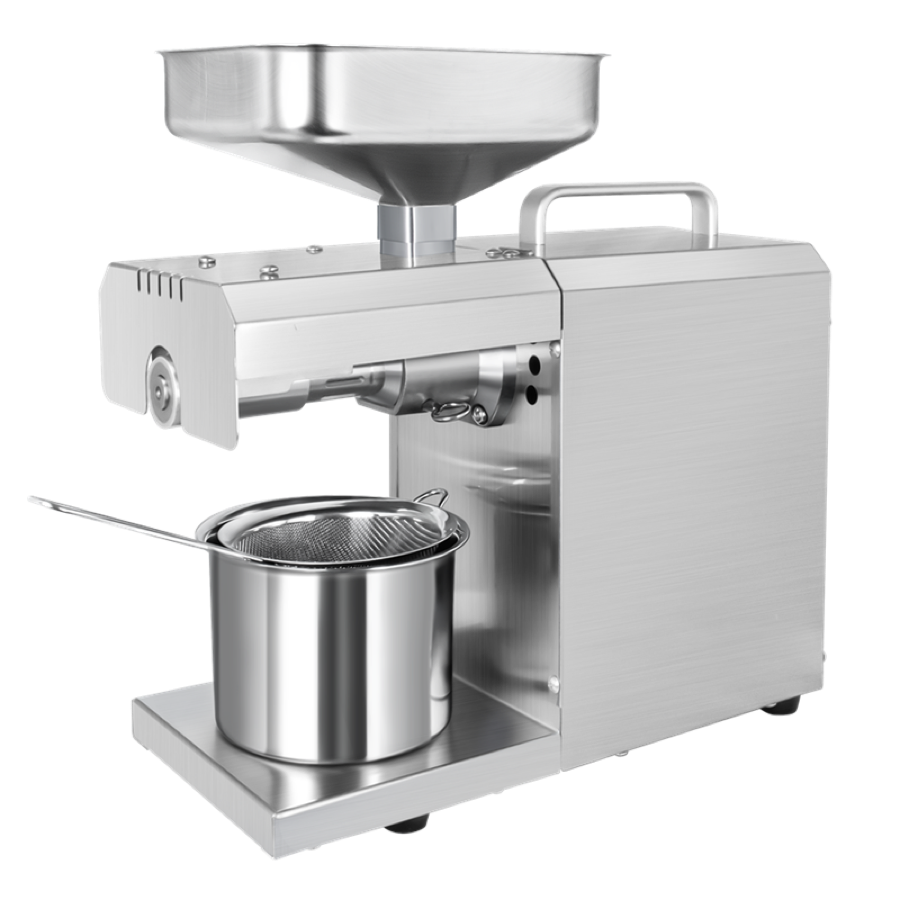

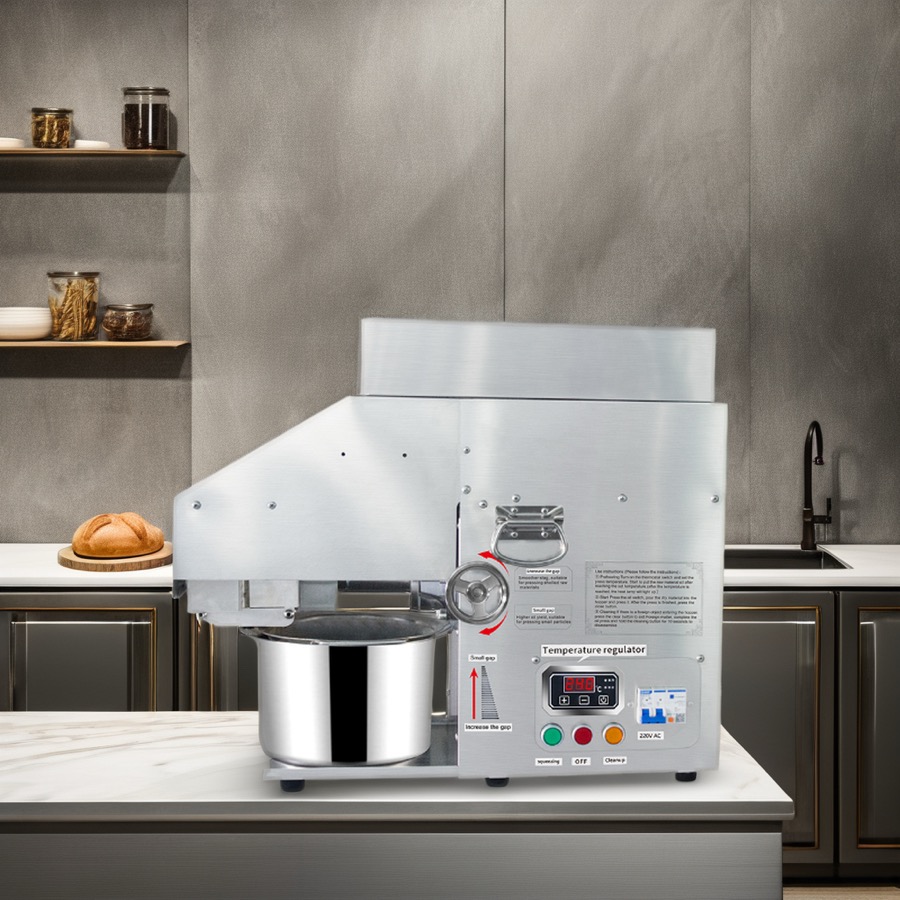

Need a 3–30 kg/h screw press for home or a farm shop? We also supply twelve compact screw oil press models. See the small oil press range →
FAQ
Hydraulic oil press machine — common questions
How much does a hydraulic oil press machine cost?
The price depends mainly on the model (press force), single or double barrel, barrel diameter and what you add around the press — roaster, oil filter, control options and spare parts. A hot-press 300/325 is our entry level; the 355–500 cold-press models cost more because the cylinder, frame and steel thickness scale with force. See the hydraulic oil press price guide, or send your seed and daily target for an exact FOB or CIF quotation.
Which model should I choose — 300/325 or 355–500?
Choose the 300 or 325 for roasted, hot-pressed seeds such as sesame and peanut. Choose the 355–500 range for cold pressing harder or premium materials such as walnut, flaxseed, tea seed, almond and pumpkin seed, where higher cake pressure raises the yield. The selection guide walks through the decision.
What oilseeds can a hydraulic oil press process?

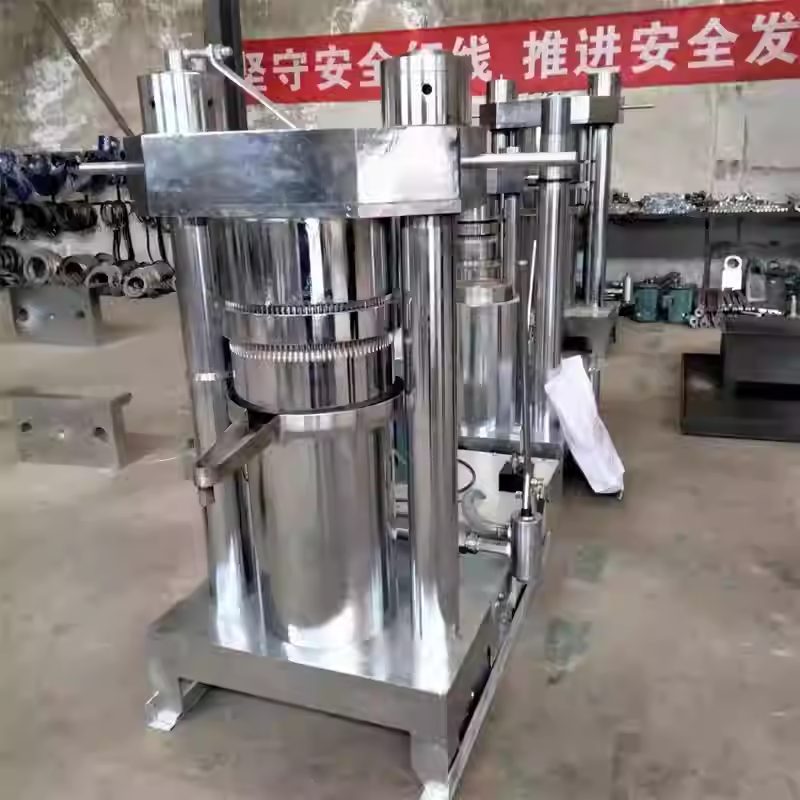

Sesame, peanut, walnut, flaxseed (linseed), rapeseed and mustard, tea seed (camellia), almond, pine nut, pumpkin seed, hemp seed, perilla, sea buckthorn, dried coconut (copra) and cocoa liquor. New materials can be test-pressed in our factory from a sample you send.
Hydraulic or screw oil press — which is better?
A screw press is continuous and suits large tonnages of low-value seed. A hydraulic press works in batches, runs cooler and gives clearer oil with better flavour, so it suits sesame, walnut and other premium or cold-pressed oils and fresh-oil shops. Read the full hydraulic vs screw press comparison.
Do you help with installation and spare parts?
Yes. Each order ships with installation drawings, a wiring guide and a spare-parts list, and our engineers support commissioning by video call. Main wear parts are separator plates, hydraulic seals and filter paper. See the installation guide and the maintenance schedule.
What should I send to get an accurate quotation?
Your raw material, hot or cold pressing, target daily output, voltage and frequency, destination port, and whether you need filtering, refining or bottling. With these we can recommend the model and barrel and quote the complete package.
Get a hydraulic oil press quotation
Tell us your oilseed, daily output, voltage and destination country. Gavin Lee and our engineers will recommend the model, barrel and supporting equipment and send a complete quotation.
