KHOP small sesame press
KHOP-15KG automatic hydraulic press for a growing oil shop
The KHOP-15KG is presented as a medium-capacity small oil press for sesame production and small commercial operation. Its source page positions it for growing sesame oil shops, grain and oil stores, supermarkets, and small processing workshops.
Technical specification
Source-listed KHOP-15KG machine data
The 24-hour capacity and power range are retained exactly as listed on the live model page. Confirm the material preparation, operating schedule, electrical build, and final configuration before using them for project sizing.
| Item | Listed value | Buyer check |
|---|---|---|
| Model | KHOP-15KG | Use this exact designation on the quotation and supply list. |
| Machine size | 1100 × 950 × 1590 mm | Check door access, service clearance, and the final shop position. |
| Weight | 1550 kg | Confirm floor loading and unloading arrangements. |
| Voltage | 380V / 220V | Confirm which voltage, phase, and frequency apply to the supplied machine. |
| Power | 1.5-4 kW | Confirm the selected motor and electrical configuration within the listed range. |
| Capacity | 1.8 ton / 24 hours | Source-page reference value; verify operating assumptions and achievable schedule. |
| Operation type | Automatic hydraulic press | Confirm controls, operating instructions, and commissioning scope. |
Application fit
Sesame-led production for shops and small workshops
The current model page identifies sesame as the primary optimization target. Other listed high-oil kernels should be checked against the exact material condition and a representative sample.
Recommended material
Sesame oil for an established small business
The source positions this model for users who need more production than an entry-level shop setup while retaining a relatively compact machine format.
- Primary use is sesame oil production
- Suitable environments include shops, stores, supermarkets, and small workshops
- Automatic hydraulic pressing reduces reliance on manual processing
- The pressing chamber and oil tray keep extraction and collection in one machine
Source-listed for evaluation
Walnut, tea seed, pine nut, and almond
These materials are listed on the KHOP-15KG page, while sesame remains the stated recommended application.
- Share the precise raw material and kernel condition
- Confirm upstream shelling, cleaning, drying, or roasting requirements
- Use sample testing to establish an appropriate cycle
- Select an industrial press for broader multi-seed or heavy-duty production
Working principle
Hydraulic pressure extracts oil into the collection system
The source page presents a direct batch sequence from chamber loading through oil collection. Define sesame cleaning and any roasting or temperature preparation as part of the wider process.
Machine structure
Three systems identified on the KHOP-15KG source page
The component lists below preserve the model page’s specific hydraulic and electrical descriptions.
Main body
Base plate, columns, pressing chamber, and oil collection tray form the working structure where material is pressed and oil is received.
Hydraulic system
Transmission shaft, worm gear and worm, gear pump, high-pressure pump, hydraulic cylinder, and control valves provide the pressing drive.
Electrical controls
Motor, voltage meter, temperature controller, pressure gauge, and power system support automatic operation and process monitoring.

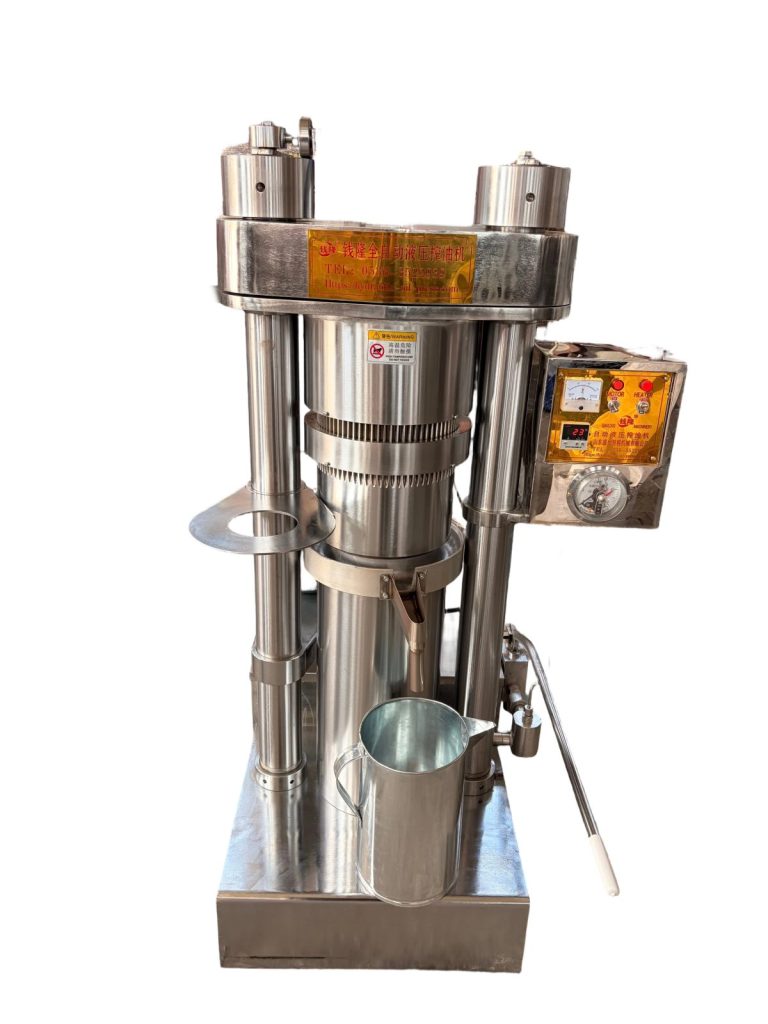

Equipment and material views
Review the KHOP-15KG source-page machine media
Start with the Korean-style sesame production-line video, then use the model photos to inspect the machine format. The material image does not expand the model’s approved material list.
6:39 process video
See the shared Korean-style sesame pressing workflow
This video is used across the KHOP-10KG, KHOP-15KG, and KHOP-20KG pages to show the production-line sequence. Use the KHOP-15KG table above for this model’s published size, weight, power, and capacity references.
- The video demonstrates the common workflow, not three identical model outputs.
- Confirm the KHOP-15KG batch basis, utilities, and acceptance test separately.
Buyer configuration checklist
Check the growing business requirement against the machine
- Sesame variety, seed condition, and representative sample
- Daily input target and planned operating hours
- Required oil profile and upstream cleaning or roasting route
- Shop or workshop dimensions, access, service clearance, and floor loading
- Required 380V or 220V configuration, plus local phase and frequency
- Selected motor power within the listed 1.5-4 kW range
- Oil collection vessel and clean storage arrangement
- Cake removal, handling, and cleaning procedure
- Operator instructions and commissioning requirement
- Written list of included tools, consumables, and recommended spare or wear parts
- Destination country and unloading plan for the listed machine weight
Validate the working schedule
The live page lists 1.8 ton per 24 hours. Treat this as a reference value until the sesame preparation, loading practice, cycle time, cleaning routine, staffing, and downtime are agreed.
The page does not define a standard accessory or spare-parts package, so request an itemized supply list with the quotation.
Related planning pages
Continue from model selection to process definition
Confirm the KHOP-15KG against the growing shop requirement
Send the sesame type, daily input, operating schedule, shop or workshop dimensions, local electrical supply, upstream preparation, oil collection plan, destination, and required supply scope.
