Palm Oil vs Palm Kernel Oil: Different Raw Material, Different Machines

Palm oil and palm kernel oil come from the same fruit but from different parts of it, and they need different machines. Buyers in West Africa sometimes ask us for one machine to do both. It does not exist. This page explains why and which equipment fits each.

Two oils from one fruit

	Palm oil	Palm kernel oil
From	Fruit flesh (mesocarp)	Kernel inside the nut
Color	Red-orange	Pale yellow
Process	Wet: sterilize, thresh, digest, press, clarify	Dry: crack nuts, separate kernels, crush, press, filter
Main machine	Screw press within a full line	Oil press
Scale to start	Large	Small to medium

Palm oil needs a full line

Fresh fruit bunches must be sterilized with steam within a day or two of harvest, stripped, digested and pressed while hot, and the oil clarified to remove water and fiber. That is a continuous wet process built around a screw press. A hydraulic press is not suited to it.

Palm kernel oil can start with one press

Palm kernels are a dry, stable raw material. After cracking and separation, the kernels are crushed and conditioned with heat before pressing. In our process sheet, palm kernel is hot pressed after a high-speed crusher and a steamer, with an oil content of about 42%. A hydraulic oil press suits small and medium batches; screw presses suit continuous bulk production.

Hydraulic or screw press for palm kernels

	Hydraulic press	Screw press
Operation	Batch	Continuous
Output	Medium	High
Cake	Hard cake, easy to store	Flakes
Best for	Small and medium mills	Large volumes

Mistakes to avoid

• Buying an oil press for fresh palm fruit.
• Planning a palm oil mill without a clarification stage.
• Pressing kernels without crushing and conditioning them first.

Related Reads

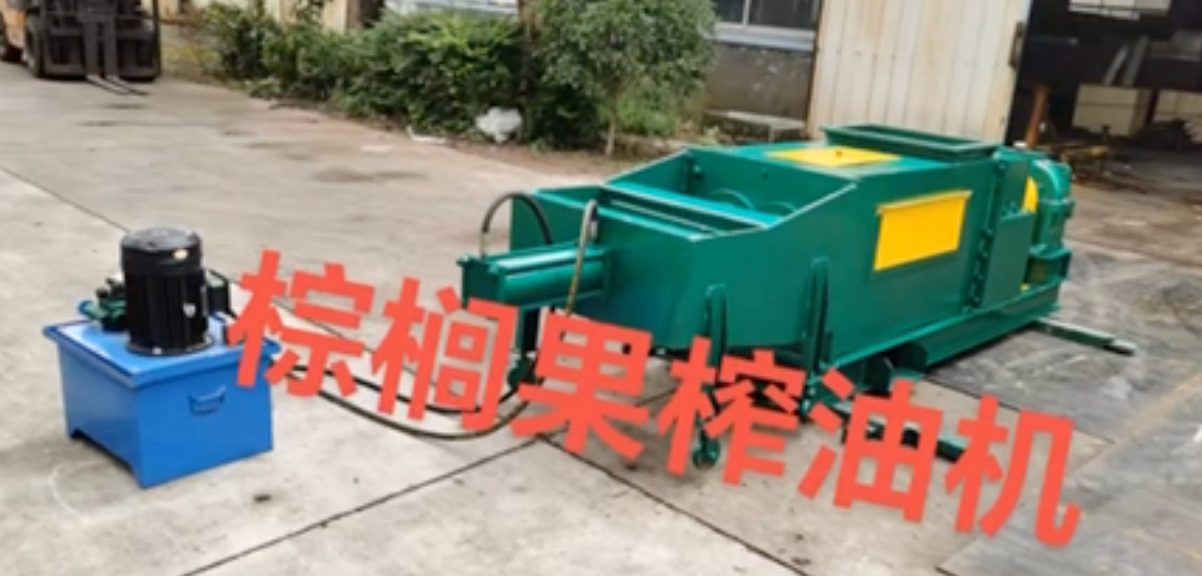

• Double Screw Palm Oil Press Machine
• Palm Oil Production Line
• Hydraulic vs Screw Press: Real Production Compared
• How to Choose a Hydraulic Oil Press Machine

FAQ

Are palm oil and palm kernel oil the same?

No. Palm oil comes from the fruit flesh, palm kernel oil from the kernel inside the nut. They are processed differently and sold to different markets.

Can a hydraulic oil press process fresh palm fruit?

No. Fresh fruit needs a wet process with sterilizing, digesting, a screw press and clarification. A hydraulic press is used for kernels.

Which is easier to start?

Palm kernel oil. The raw material stores well and a small mill can start with crushing, conditioning and one press.

Get a setup for your seed and output

Tell us whether you process fresh fruit or kernels and how many tons a day. We will match the equipment to it.
